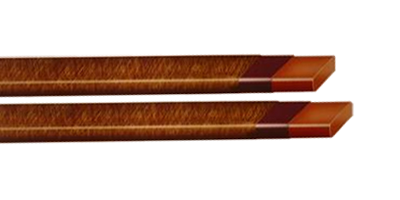

Enamelled and Fibre Glass Covered Flat Copper Wire


Dimension Temp Class Insulation Type Specification Application

Min : 4 x2 mm

Max : 12 x 4 mm

Area : 8 – 48 Sq mm


Class F,155ºC

Enamel : Polyester

Varnish : Polyester

IS 13730 - 32

IEC 60317 - 32

High Voltage Motors / Generators
DC Motors / Generators
Transformer

Class H,180ºC

Enamel : Polyesterimide Varnish : Polyesterimide

IS 13730 - 31
IEC 60317 - 31

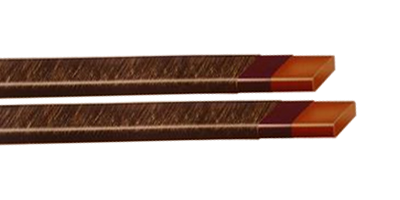

Enamelled and Polyester Glass ( Daglass) Covered Flat Copper Wire


Dimension Temp Class Insulation Type Specification Application

Min : 4 x2 mm
Max : 12 x 4 mm

Area : 8 – 48 Sq mm


Class 200ºC

Enamel
Base Coat : Polyesterimide
Top Coat   : Polyamide Imide

Customer Specification

Hydro Generators

Roebel bar Application.

Class H,180ºC

Enamel
Polyesterimide

Customer Specification
