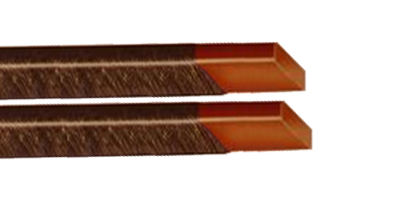

Fibre Glass Covered Flat Copper Wire

Combination Products with Fibre Glass
Enamel and Fibre Glass Covered Flat Copper Conductors.
Enamel Coated ,Polyester Film Covered and Fibre Glass Covered Flat Copper Conductors.
Polyester Film Covered, Nomex^® Covered and Fibre Glass Coated Flat Copper Conductors.
Polyimide Film ( Kapton^®) and Fibre Glass Covered Flat Copper Conductors.
Flat Aluminium wires with above combination.

Dimension	Temp Class	Insulation Type	Specification	Application
Min : 3 x 2 mm Max : 16 x 4 mm Area : 6 – 64 Sq mm	Class F,155ºC	Polyester	IEC 60317 - 32 IS 13730 - 32	High Voltage Motors / Generators DC Motors / Generators Transformer Welding Machine Electromagnets
Class H,180ºC	Polyesterimide	IEC 60317 - 31 IS 13730 - 31
Class 200	Silicon	IEC 60317 - 04 - 33 IS 13730 - 04 - 33

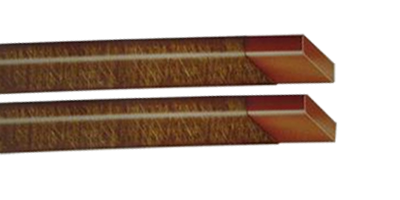

Polyester Glass (Daglass) Covered Flat Copper Wire

Dimension	Temp Class	Insulation Type	Specification	Application
Min : 4 x 2 mm Max : 12 x 4 mm Area : 8 – 48 Sq mm	Class 155ºC	Enamel : Polyesterimide Enamel Polyesterimide and Polyamide-imide	IEC 60317-60-1 / IEC 60317-60-2	Hydro Generators Roeble bar Application.
Class 180ºC	IEC 60317-61
