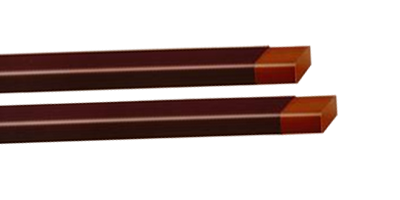

Enamelled Flat Copper Wire

    Combination Products with Enamel

  • Enamel Coated and Polyester Glass/Fibre Glass Covered Flat Copper Conductors.
  • Enamel Coated and NomexTM Covered Flat Copper Conductors
  • Enamel Coated and Mica Covered Flat Copper Conductors.


Dimension Temp Class Insulation Type Specification Application

Min : 3 x1 mm
Max : 12 x 4 mm

Area : 3 – 48 Sq mm

Class 200ºC

Base Coat : Polyesterimide
Top Coat   : Polyamide Imide

IS 13730 - 29
IEC 60317 - 29

High Voltage Motors / Generators

Dry Type Transformer

Class H,180ºC

Polyesterimide

IS 13730 - 28

IEC 60317– 28

Class F,155ºC

Polyester

IS 13730 - 16
IEC 60317 – 16
